EFL 43: Hipot for Electrical Appliances Test

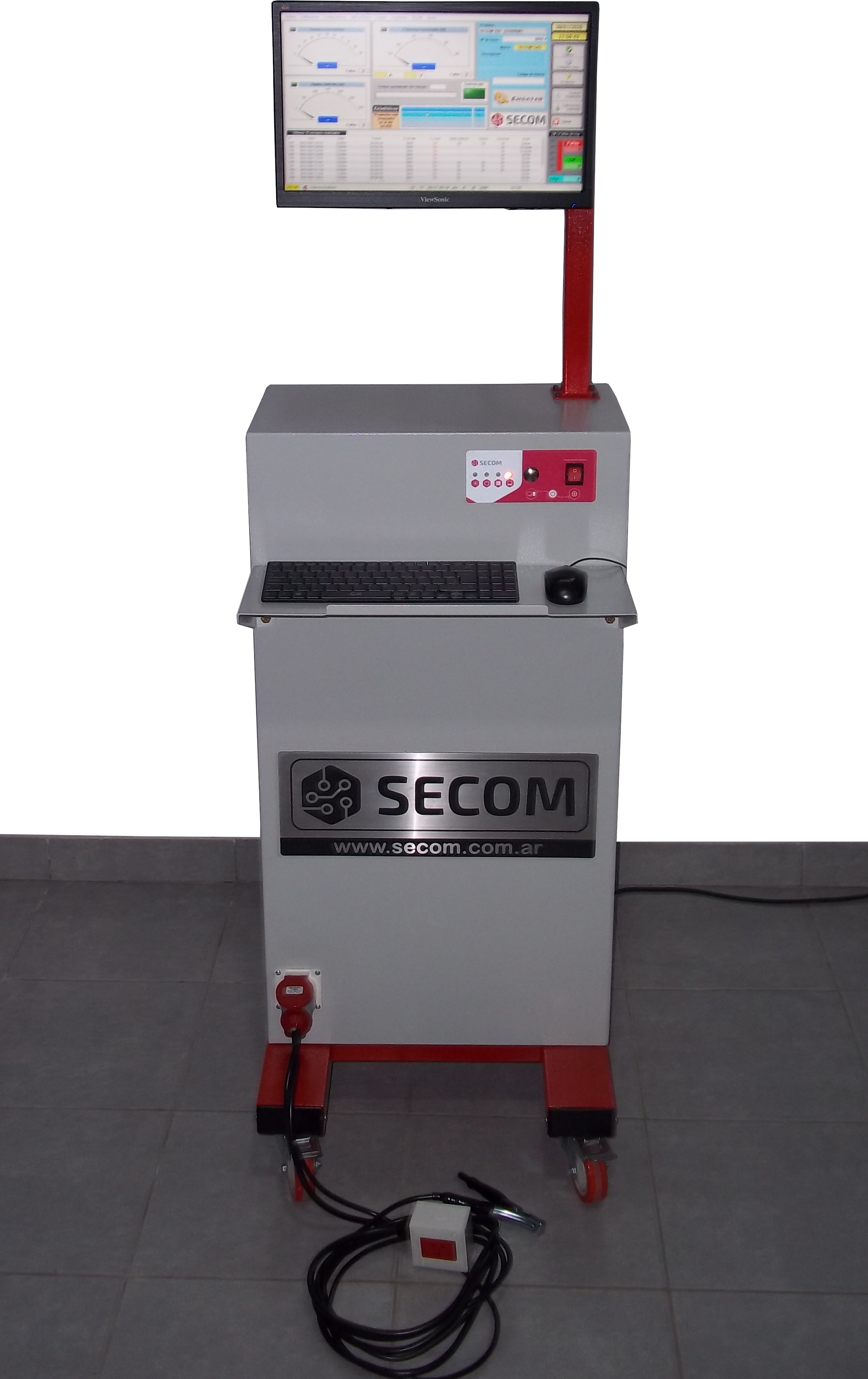

This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.

The EFL 43 make test of: Ground Bond Tests, Dielectric Strenght CI & CII, Short circuit and Functional Run Test.

Make this test

  • check_circle Short Circuit.
  • check_circle Ground Bond Tests: >= 20 Aac / < 12 Vac.
  • check_circle Dielectric Strenght
    • done Class I: 1000 Vac.
    • done Clase II: 2500 Vac.
  • check_circle Watt Measurement of the equipment Under Test (DUT).

This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.

The system of acquisition and control of data, is based on a microcontroller of last generation mounted on a electronic board development for SECOM: selection, filtrate, processing and measurement of signals.

This board is linked to an internal PC, which runs software responsible for the administration and control of the entire system.

A keyboard and mouse allow full control of the equipment's functions as well as its programming.
An auditory and visual signal allows monitoring of equipment operation as well as alerting in the event of a non-compliant test.

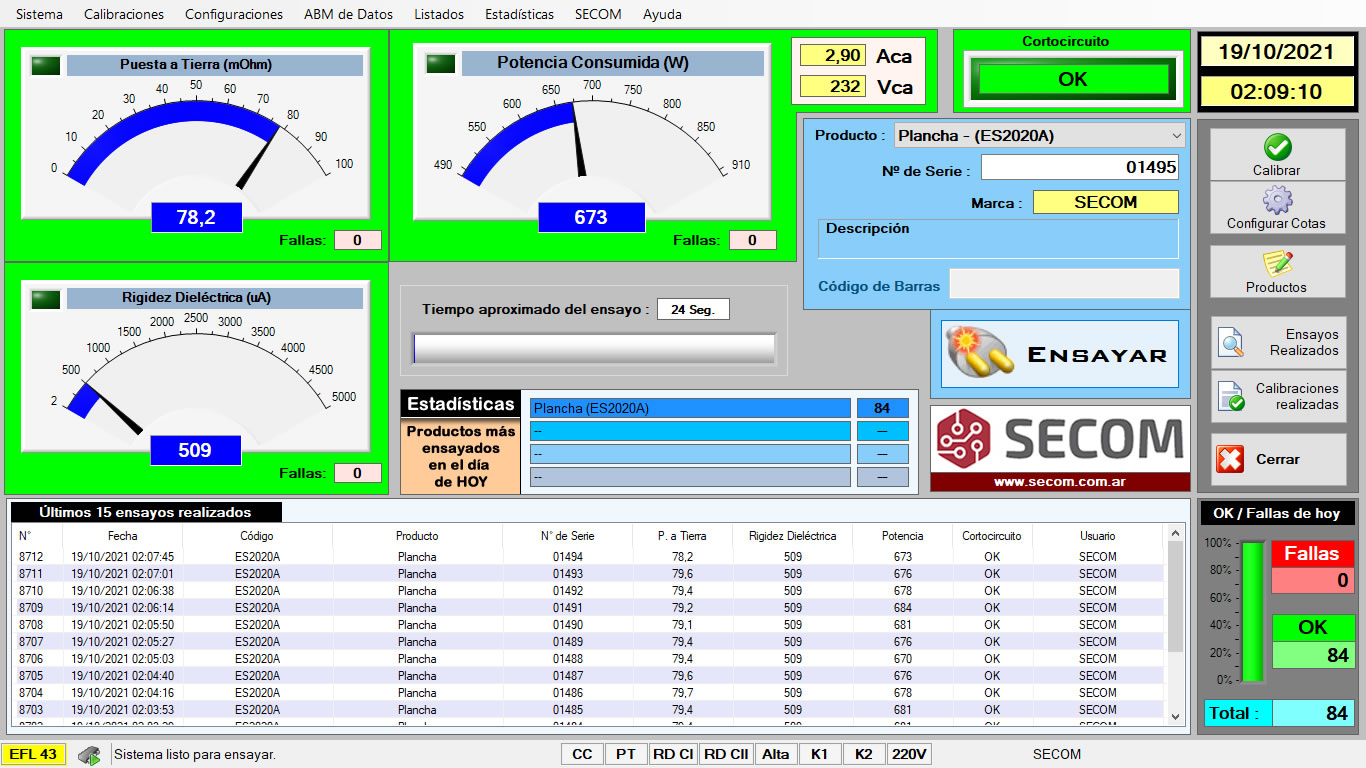

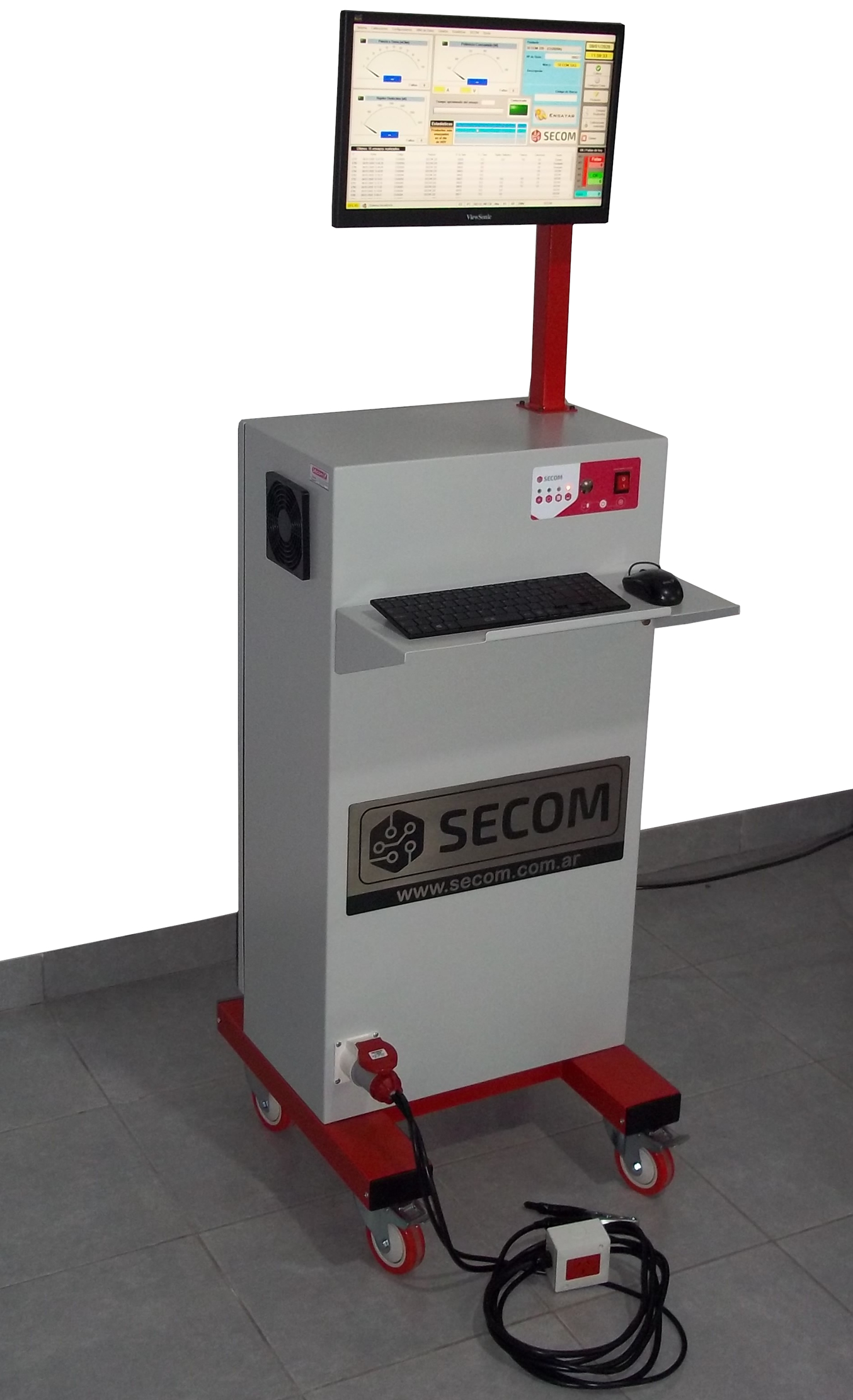

The system has a 19" LED monitor to be able to view and control the entire system.

The EFL 43 equipment is a data Acquisition, Processing, Control and Management system, which allows you to store all the results in a database and then generate daily/monthly/annual production reports, statistical graphs, thus obtaining all the information and trends necessary for the administration of the production control system.
It also allows you to print labels (printer not provided) identifying the product and the results of the tests carried out. Both the equipment and this platform were designed for simple and dynamic handling.

The equipment is given with its Report of calibrations drawn up to national patterns (of optional way) and a user manual for its use.

What does the equipment include? :

  • navigate_next Carga patrón CCP 02 The Daily Checker. To ensure you that your AC Hipot Tester EFL 43 works properly.
  • navigate_next Monitor LED 19”.

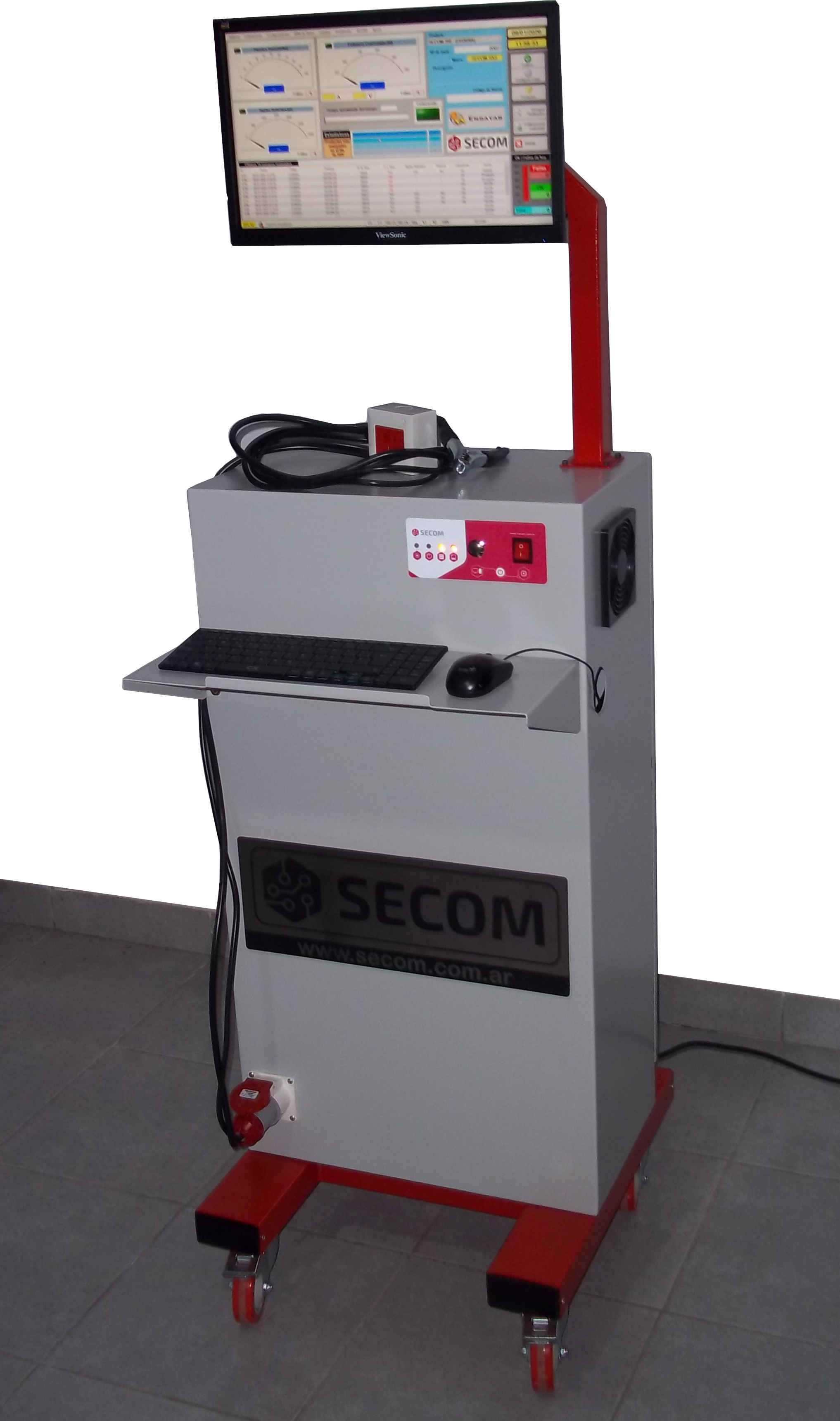

  • navigate_next Case (box) with wheels and monitor support.
  • navigate_next Keyboard and mouse.
  • navigate_next Internal PC with Windows 11 Home.
  • navigate_next User Manual.
  • navigate_next Test wires.
  • navigate_next Power supply wire.
  • navigate_next Calibration report.

The AC Hipot Tester EFL 43 includes EVERYTHING you need for daily work. You only need to connect to 220Vac

Aditional Information:

  • add Save records of the tests performed.
  • add Save records of the calibrations performed.
  • add Include internal PC.
  • add You can connect a printer.
  • add You can connect a barcode reader.

The components used in the design guarantee an excellent quality of work.

Models Comparison :

SPECIFICATIONS EFL 21 EFL 23 EFL 33 EFL 41 EFL 43 EFL 51 EFL 53
Short circuit -- -- --
Ground Bond Test (>= 20Aac / < 12Vac)
Dielectric Strength Class I (1000Vac)
Consumed Current Measurement
Dielectric Strength Class II (2500Vac) -- -- --
Insulation Resistance (500Vcc) -- -- -- -- --
Watt Meter -- --
Keeps Test Mades -- -- --
Print Labels -- -- --
Can use Barcode Scanner -- -- --
Go to the equipment SEE SEE SEE SEE SEE SEE SEE

TECHNICAL SPECIFICATIONS

Power Supply
220Vca, 50 Hz, 10A, Single-phase
Case (box)
Self-supporting with wheels.
Indicators
Monitor LED 19".
Control
Totally controlled by microprocessor.
To Test
Equipment Class I (max. 10A).
Daily checker
CCP 02 Test Verification Box.
Dimensions
arrow_right_alt 550mm x 550mm x 1650mm (height with monitor support).
arrow_right_alt Weight: 75 Kg.
Accessories
arrow_right_alt Plug Test + Clamp Test.
arrow_right_alt CCP 02 Test Verification Box.
Guarantee
12 months.
According to
IEC 60335-1 Annex A.
