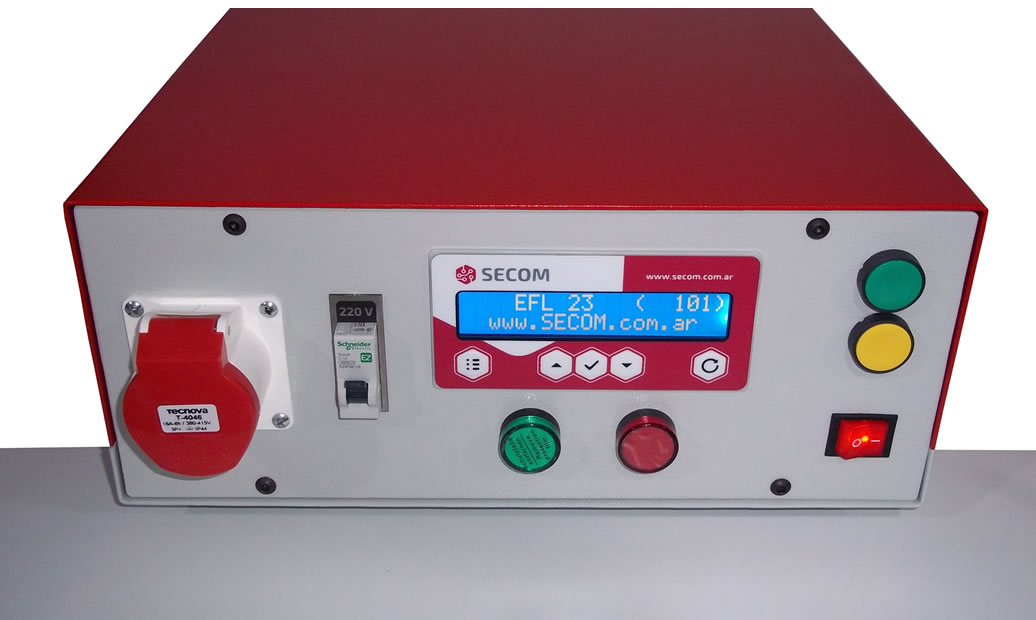

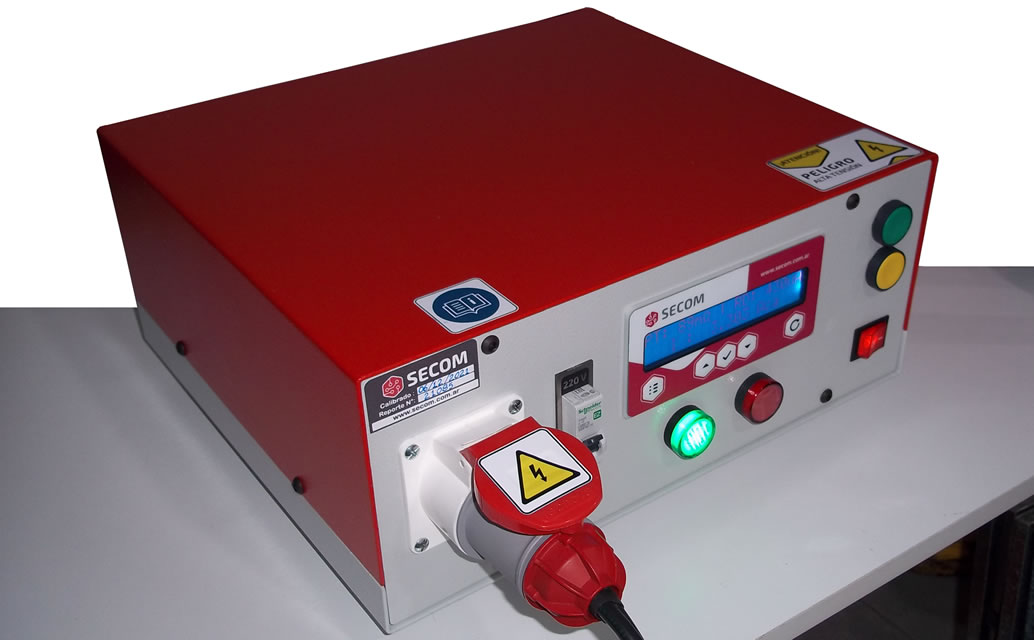

EFL 23: AC Hipot Tester for Electrical Appliances
EFL 23: Hipot for Electrical Appliances Test
This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.
The EFL 23 make test of: Ground Bond Tests, Dielectric Strenght CI & CII, and Functional Run Test.
Make this test
- check_circle Ground Bond Tests: >= 20 Aac / < 12 Vac.
- check_circle Dielectric Strenght
- done Class I: 1000 Vac.
- done Class II: 2500 Vac.
- check_circle Starting of the equipment Under Test (DUT).
The system of acquisition and control of data, is based on a microcontroller of last generation mounted on a electronic board development for SECOM: selection, filtrate, processing and measurement of signals.
An auditory and visual signal, allows the pursuit of operation of the equipment as also the alert before a test does not conform.
As much the equipment as this platform was designed for a simple and dynamic handling .
The equipment is given with its Report of calibrations drawn up to national patterns (of optional way) and a user manual for its use.

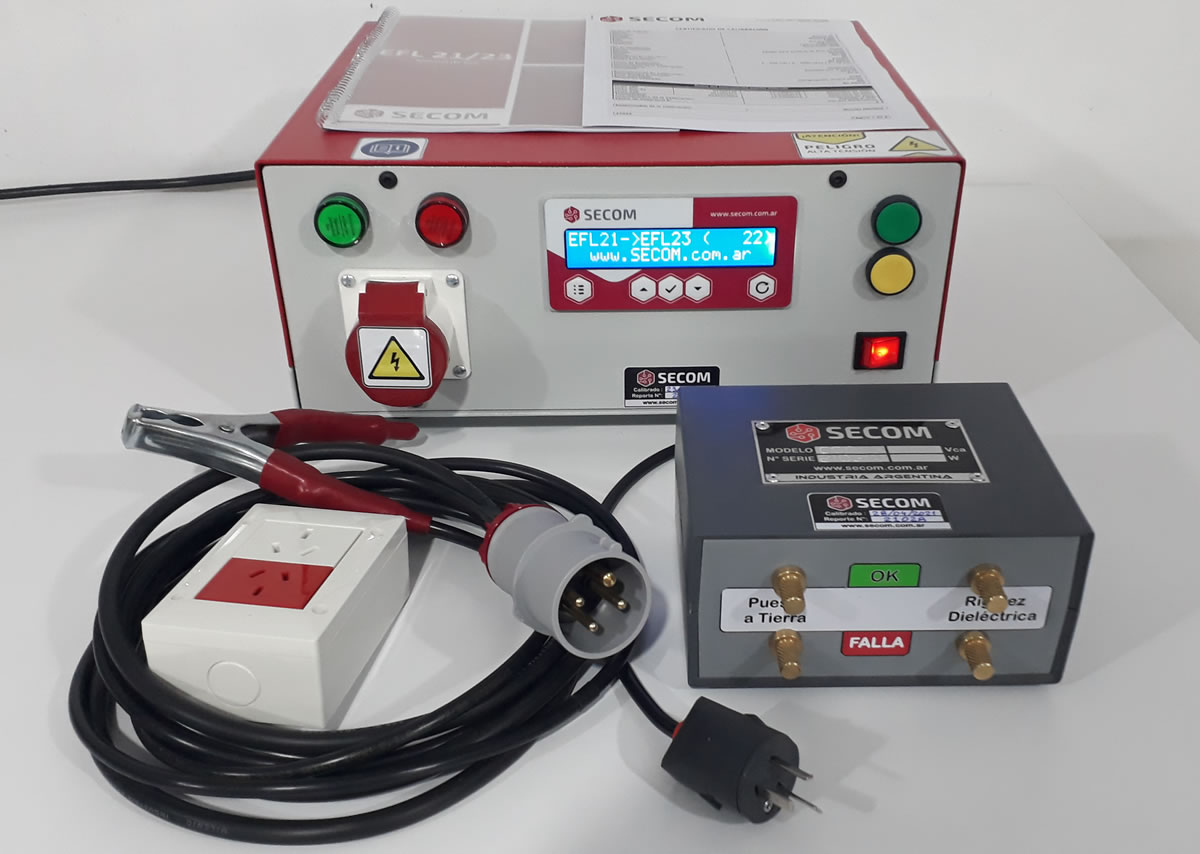

What does the equipment include? :

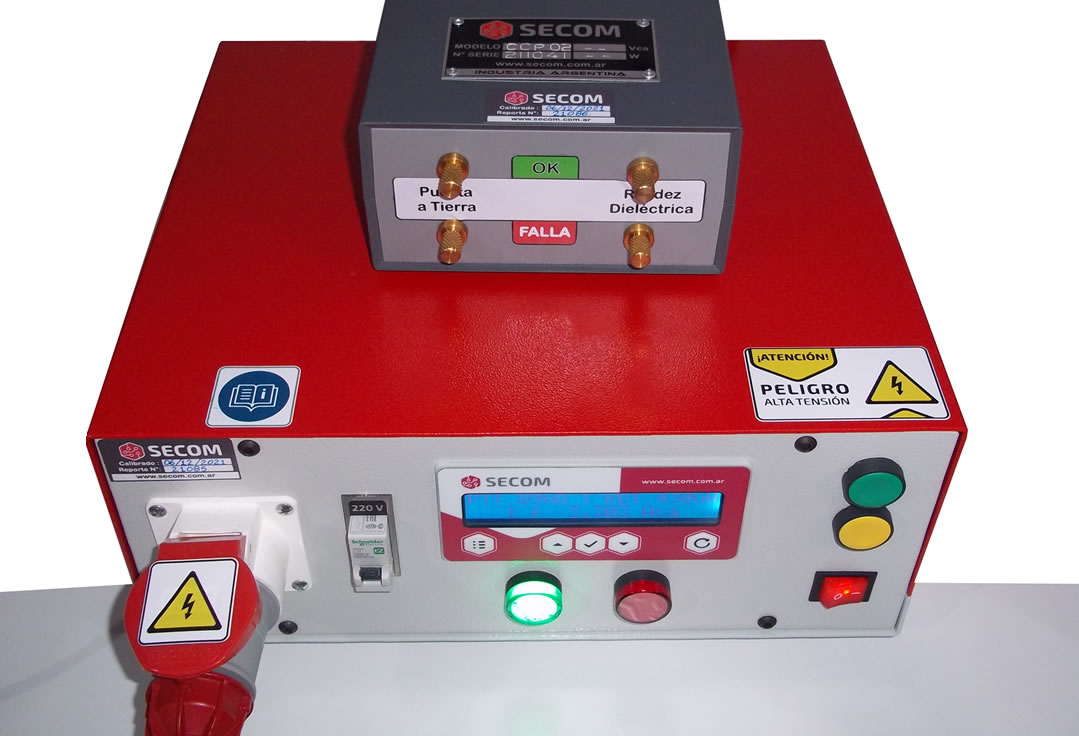

- navigate_next Carga patrón CCP 02 The Daily Checker. To ensure you that your AC Hipot Tester EFL 23 works properly.
- navigate_next User Manual.
- navigate_next Test wires.
- navigate_next Power supply wire.
- navigate_next Calibration report.
The AC Hipot Tester EFL 23 includes EVERYTHING you need for daily work. You only need to connect to 220Vac
Aditional Information:
- clear DOES NOT save records of the tests performed.
- clear DOES NOT save records of the calibrations performed.
- clear DOES NOT have connections to PC.
- clear DOES NOT have connections to printers.
- clear You CANNOT connect a barcode reader.
The components used in the design guarantee an excellent quality of work.
Models Comparison :
| SPECIFICATIONS | EFL 21 | EFL 23 | EFL 33 | EFL 41 | EFL 43 | EFL 51 | EFL 53 |
|---|---|---|---|---|---|---|---|
| Short circuit | -- | -- | -- | ||||
| Ground Bond Test (>= 20Aac / < 12Vac) | |||||||
| Dielectric Strength Class I (1000Vac) | |||||||
| Consumed Current Measurement | |||||||
| Dielectric Strength Class II (2500Vac) | -- | -- | -- | ||||
| Insulation Resistance (500Vcc) | -- | -- | -- | -- | -- | ||
| Watt Meter | -- | -- | |||||
| Keeps Test Mades | -- | -- | -- | ||||
| Print Labels | -- | -- | -- | ||||
| Can use Barcode Scanner | -- | -- | -- | ||||
| Go to the equipment | SEE | SEE | SEE | SEE | SEE | SEE | SEE |
TECHNICAL SPECIFICATIONS
arrow_right_alt OK and FAULT light.
arrow_right_alt Sonoro.
arrow_right_alt Equipment Class II (max. 10 A).
arrow_right_alt Weight: 22 Kg.
arrow_right_alt CCP 02 Test Verification Box.
