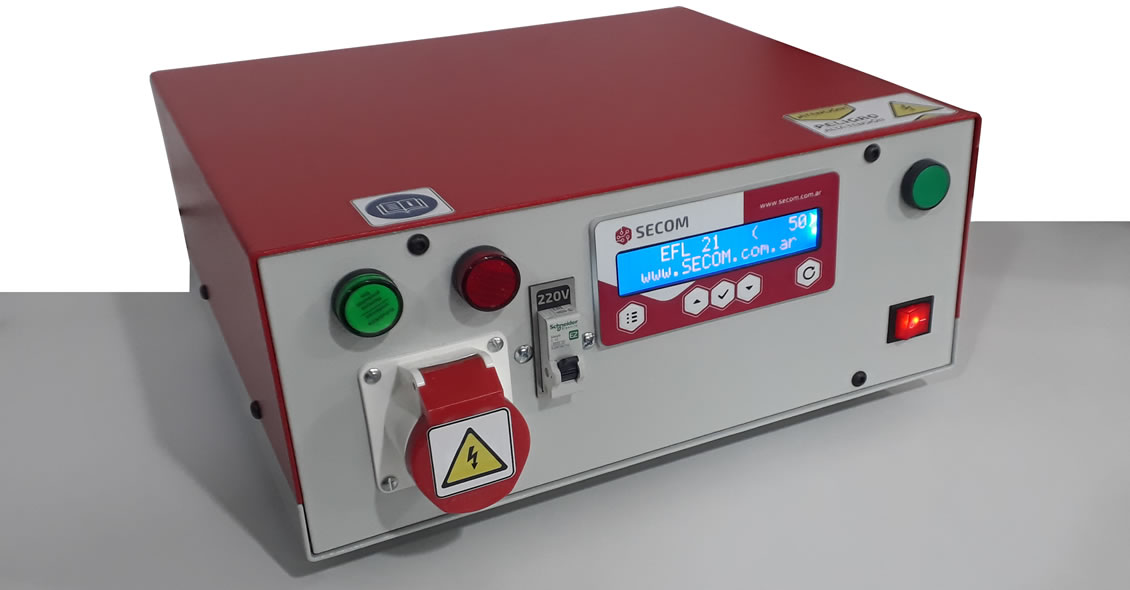

EFL 21: AC Hipot Tester for Electrical Appliances
EFL 21: Hipot for Electrical Appliances Test
This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.
The EFL 21 make test of: Ground Bond Tests, Dielectric Strenght CI and Functional Run Test.
Make this test
- check_circle Ground Bond Tests: >= 20 Aac / < 12 Vac.
- check_circle Dielectric Strenght
- done Class I: 1000 Vac.
- check_circle Starting of the equipment Under Test (DUT).
This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.
The system of acquisition and control of data, is based on a microcontroller of last generation mounted on a electronic board development for SECOM: selection, filtrate, processing and measurement of signals.
An auditory and visual signal, allows the pursuit of operation of the equipment as also the alert before a test does not conform.
As much the equipment as this platform was designed for a simple and dynamic handling.
The equipment is given with its Report of calibrations drawn up to national patterns (of optional way) and a user manual for its use.
What does the equipment include? :

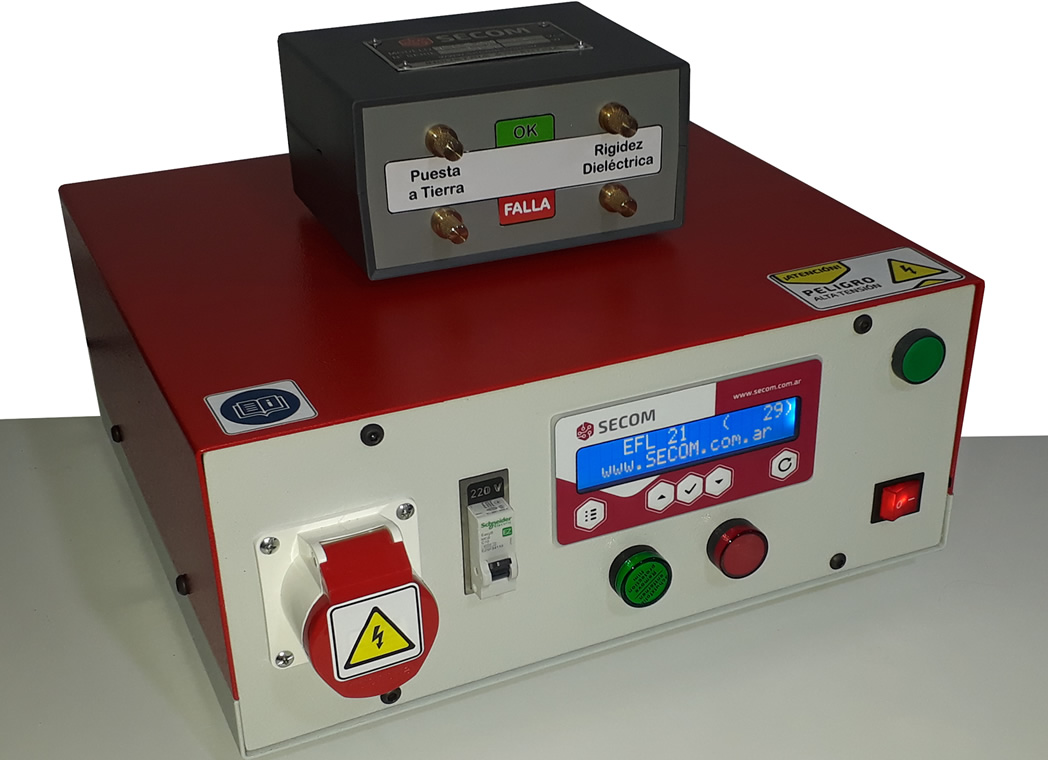

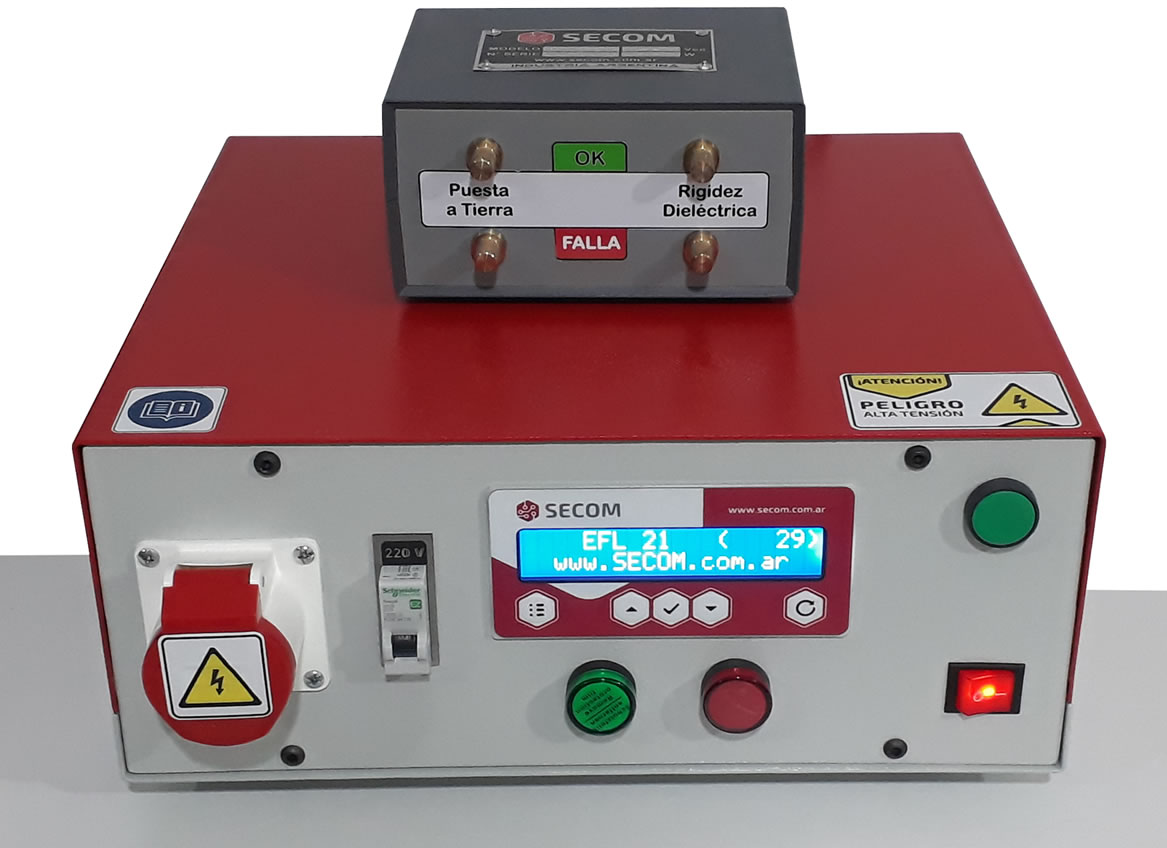

- navigate_next Carga patrón CCP 02 The Daily Checker. To ensure you that your AC Hipot Tester EFL 21 works properly.
- navigate_next User Manual.
- navigate_next Test wires.
- navigate_next Power supply wire.
- navigate_next Calibration report.
The AC Hipot Tester EFL 21 includes EVERYTHING you need for daily work. You only need to connect to 220Vac
Aditional Information:
- clear DOES NOT save records of the tests performed.
- clear DOES NOT save records of the calibrations performed.
- clear DOES NOT have connections to PC.
- clear DOES NOT have connections to printers.
- clear You CANNOT connect a barcode reader.
The components used in the design guarantee an excellent quality of work.
Models Comparison :
| SPECIFICATIONS | EFL 21 | EFL 23 | EFL 33 | EFL 41 | EFL 43 | EFL 51 | EFL 53 |
|---|---|---|---|---|---|---|---|
| Short circuit | -- | -- | -- | ||||
| Ground Bond Test (>= 20Aac / < 12Vac) | |||||||
| Dielectric Strength Class I (1000Vac) | |||||||
| Consumed Current Measurement | |||||||
| Dielectric Strength Class II (2500Vac) | -- | -- | -- | ||||
| Insulation Resistance (500Vcc) | -- | -- | -- | -- | -- | ||
| Watt Meter | -- | -- | |||||
| Keeps Test Mades | -- | -- | -- | ||||
| Print Labels | -- | -- | -- | ||||
| Can use Barcode Scanner | -- | -- | -- | ||||
| Go to the equipment | SEE | SEE | SEE | SEE | SEE | SEE | SEE |
TECHNICAL SPECIFICATIONS
arrow_right_alt OK and FAULT light.
arrow_right_alt Sonoro.
arrow_right_alt Weight: 22 Kg.
arrow_right_alt CCP 02 Test Verification Box.
