DCA 25 | DCA 10: Test Rod Ø 2,5mm + Test Wire Ø 1mm
DCA 25 | DCA 10: Test Rod Ø 2,5mm + Test Wire Ø 1mm

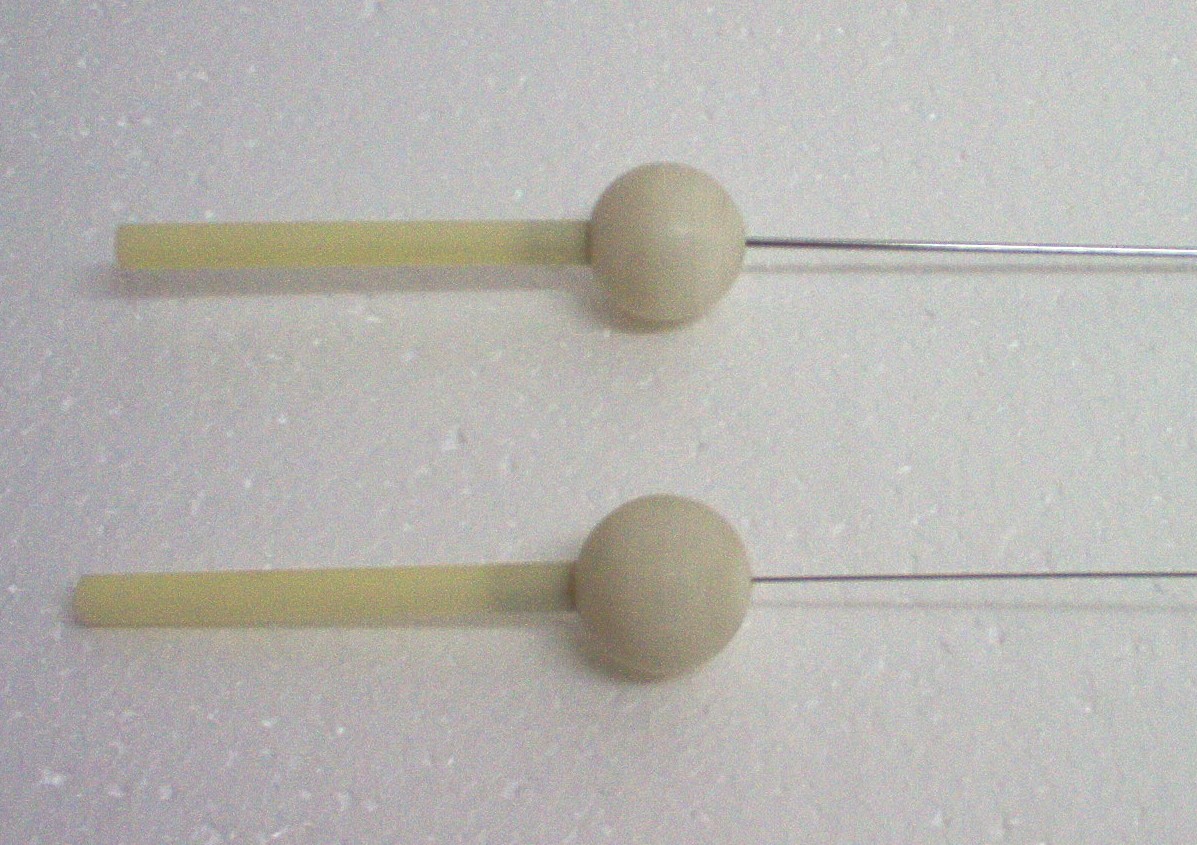

Test Wire Ø 1 mm & Test Rod Ø2,5 mm for verification of accessibility to live parts. Designed and manufactured according to Figure 3 and 4 of IEC 61032.
DCA 25: Barra de Ø 2,5mm
The Test Rod Ø2.5 mm is used to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.
DCA 10: Barra de Ø 1,0mm
The Test Wire Ø 1 mm is used to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a wire.
DEVICE SPECIFICATIONS
Material
Stainless Steel
Handle
Polyamide
Finish
Polished.
Dimensions
add Ø 1 mm.
add Ø 2,5 mm.
add Length: 100mm +/- 0,2mm.
add Sphere: Ø 35 mm +/- 0,2mm.
add Ø 2,5 mm.
add Length: 100mm +/- 0,2mm.
add Sphere: Ø 35 mm +/- 0,2mm.
Garantía
12 meses.
Gran robustez en el diseño.
Gran robustez en el diseño.
According to
done Figura 3 (Test Probe C) de la IEC 61032.
done Figura 4 (Test Probe D) de la IEC 61032.
done Figura 4 (Test Probe D) de la IEC 61032.
