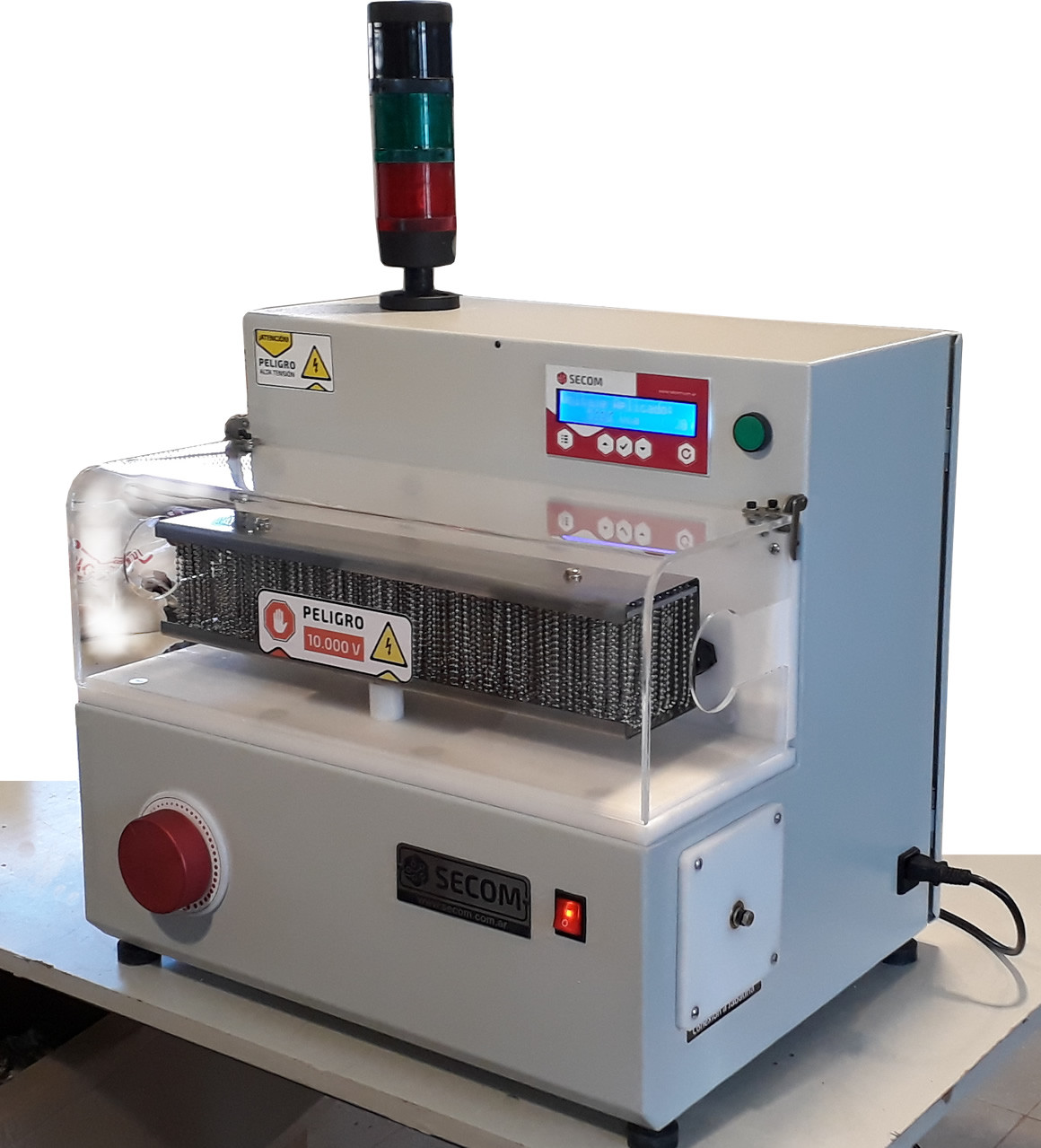

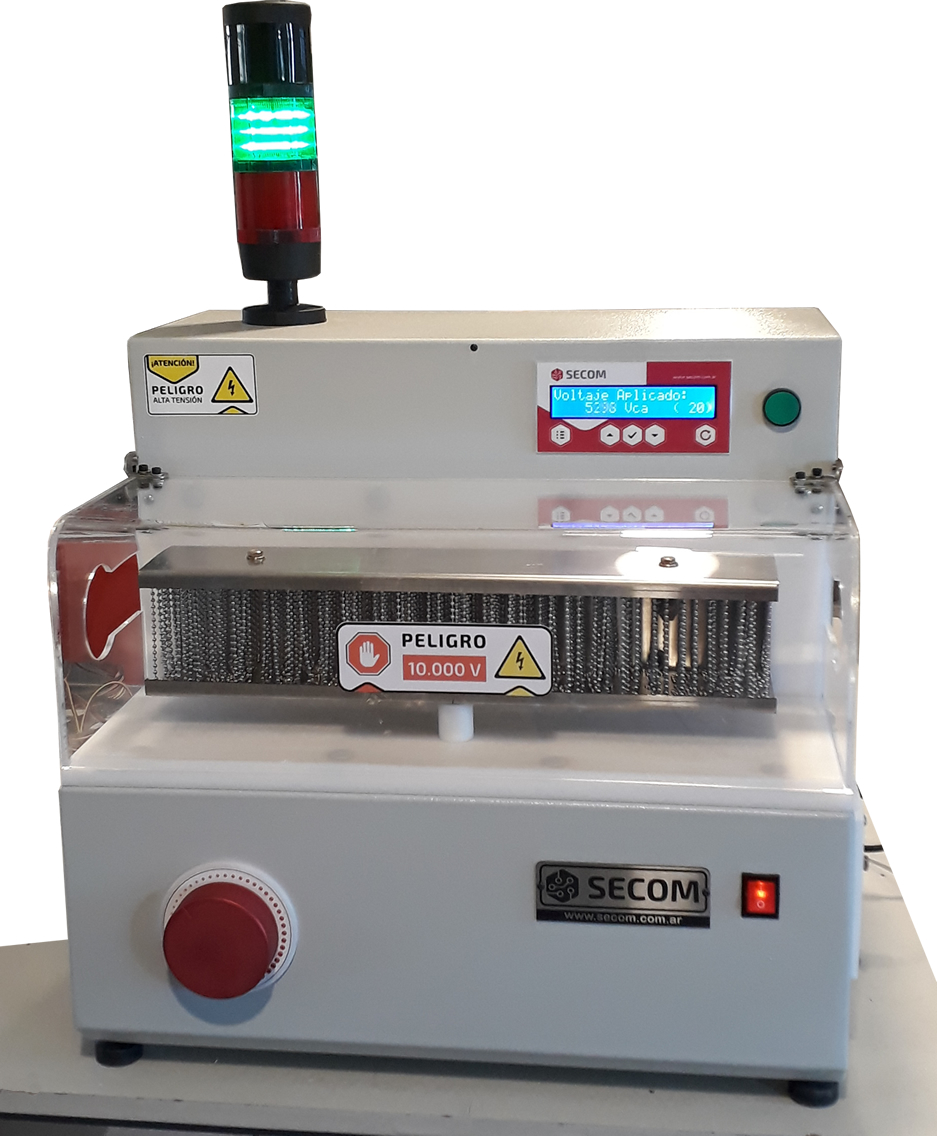

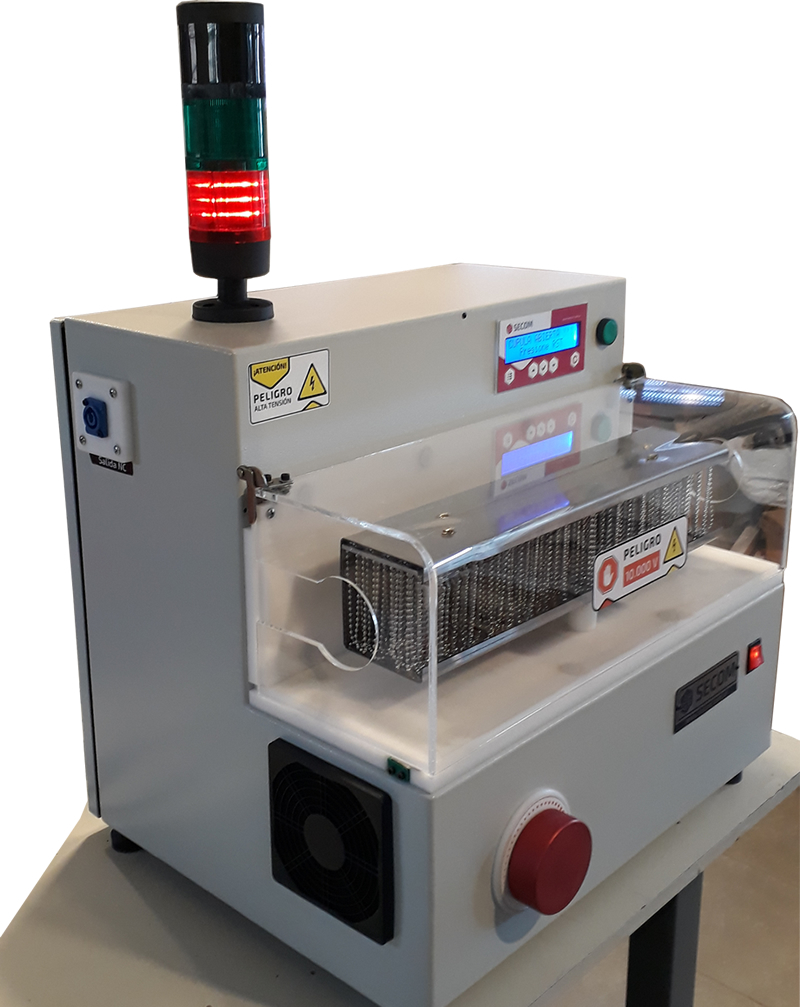

ESP 10K: Spark Tester 10KV
ESP 10K: Spark Tester 10KV.
The ESP 10K: Spark Test Apparatus was designed to perform the test in dry voltage between electrodes (spark test), to check the insulation of electrical conductors during the manufacturing process or in subsequent phases of production.
Main Specifications
- done Voltage test: up to 10 KVca.
- done Electrode Lenght: 450mm.

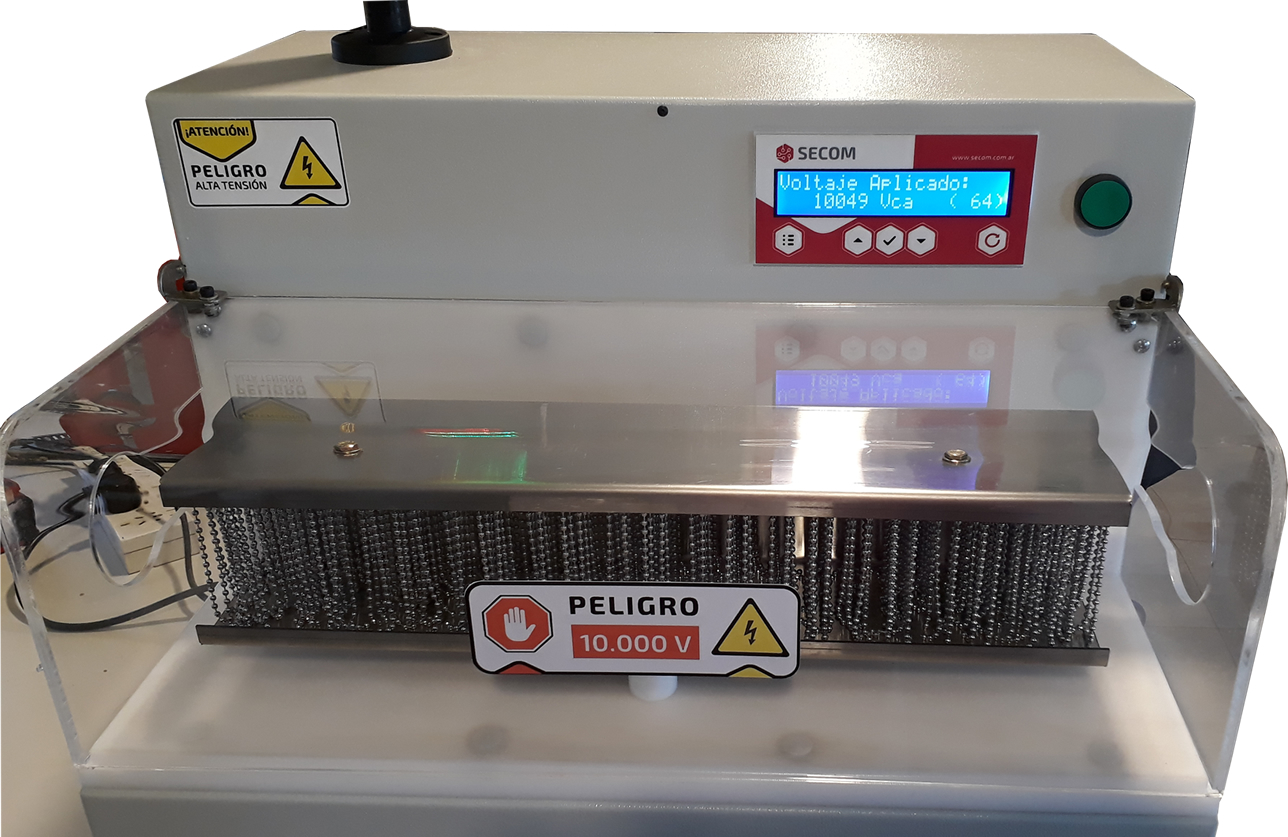

- done Electrode spheres chain.
- done Max Speed: 150 m/min.
The ESP 10K: Spark Test Apparatus (Spark Tester) is designed to perform the test in dry voltage between electrodes (spark test), to check the insulation of electrical conductors during the manufacturing process or in subsequent phases of production, the 100% production.
IEC 62230 – Electric cables - Spark-test method.
The SPARK TEST APPARATUS / SPARK TESTER from SECOM is designed and manufactured to perform the test specified in IEC 62230 and IRAM 244 to determine defects in the insulation or sheathing layers of electrics cables during the extrusion or rewinding process has become standard procedure today.
Dielectric Testing with the Spark Test method (Dry Test):
- done single conductors (unwrapped).
- done components insulated conductors of a cable (veins).
- done meetings of insulated conductors (veins) of wires before being applied the wrapper.
TECHNICAL SPECIFICATIONS
done lenght 450mm (to 150m/min).
done Visible Fault indication.
done Audible Fault indication.
Output NC (normal closed) to connect the machine of cable passage.
Vertically adjustable table (Optional).
Protection switch off the Spark Tester when you lift the dome.
Weight: 55 Kg.
IEC 62230.
