DDA 08: Articulated Test Finger Ø8.6mm

imgprincipal

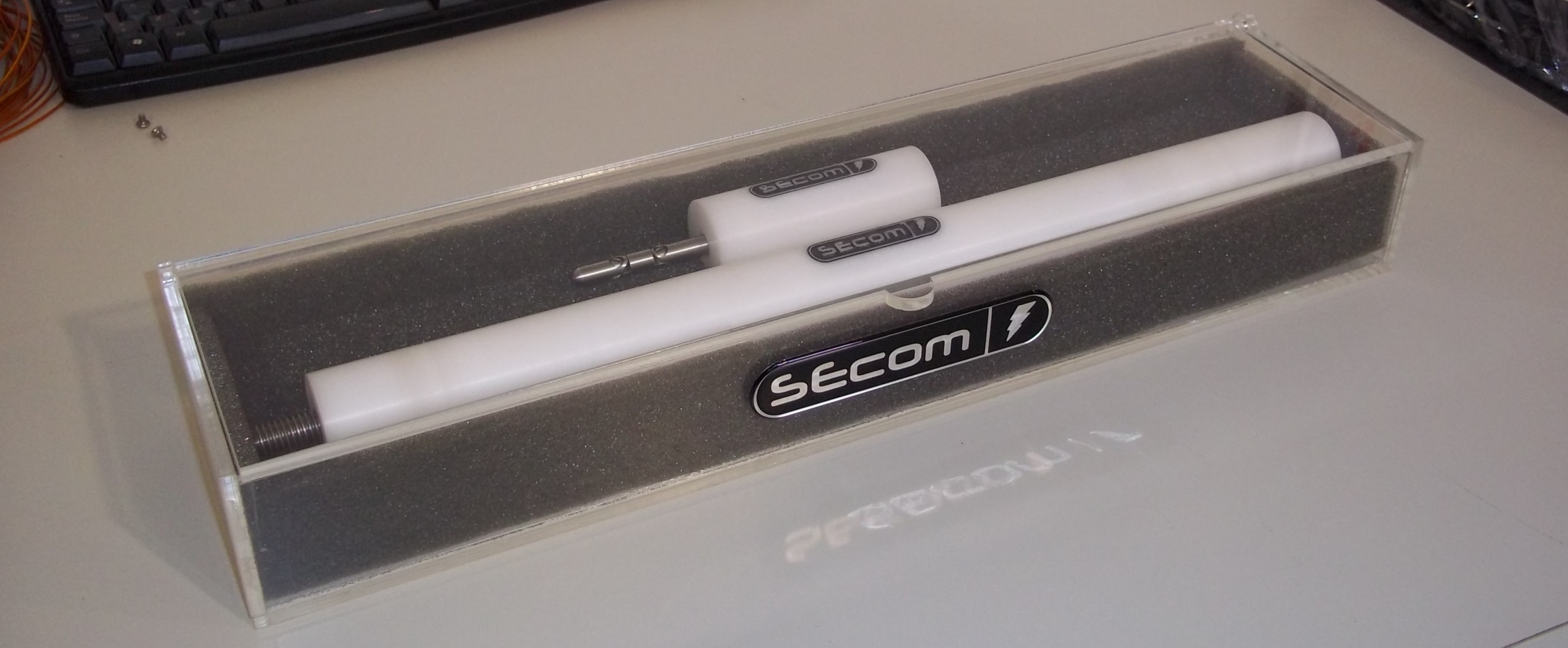

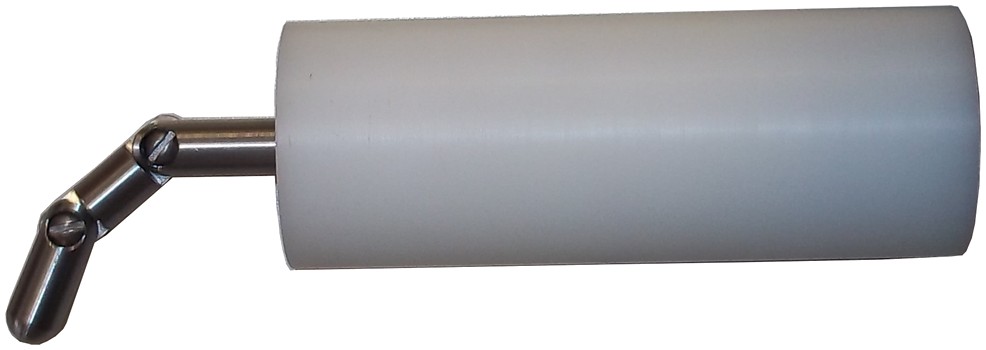

DDA 08: Articulated Children Test Finger

The Articulated Children Test Finger is a precision test probe made according to Figure 12 (Test Probe 18) of the IEC 61032 and is used to simulate a human finger.

Test Probe 18.

The Articulated Children Test Finger is a precision test probe made according to Figure 12 of the IEC 61032 (Test probe 18) and is used to simulate a children human finger. It is also used by the standards of CSA, IRAM, UL. IEC 60335, IRAM 4220-1 and in most of the rules involved in the verification of accessibility to live parts.

The Articulated Children Test Finger is on the IEC 60335, IRAM 4220-1, etc. It is present in most of the rules involved in the verification of accessibility to parts.

The Articulated Children Test Finger was made on stainless steel and Polyamide handle.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.

DEVICE SPECIFICATIONS

Material
Stainless Steel
Handle
Polyamide
Finish
Polished.
Guarantee
12 months.
According to
done IRAM 4220-1
done IEC 61032
done IEC 60335-1.
