SDL 23: Data Logger Reader DS1923
SDL 23: Temperature and Humidity
The Data Logger Reader - DS 1923 is used to view the thermal behavior of: Refrigerators, Frezzers, exhibitors, bottle coolers, appliances, electronic equipment, fixtures, machine tools, etc.
The Data Logger Reader - DS1923 is a software that allows reading and Configuring DS1923 Loggers. These data loggers record temperature and humidity every time. The user must set the interval (between 1 seg. to 273Hs min.).
It has a capacity to store 4096 temperature data with a resolution of 0.5 º C and 4096 humidity data with a resolution of 0.6 %.

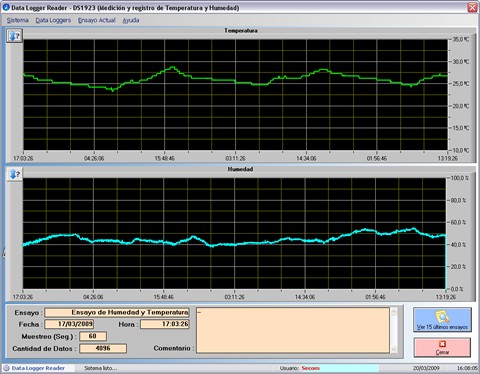

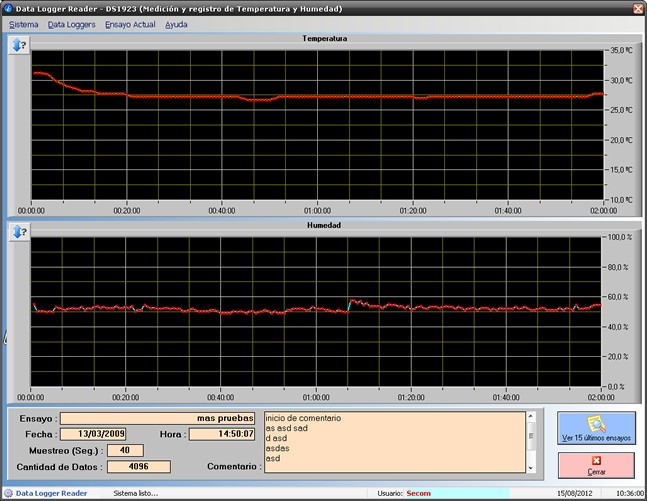

All data from the temperature are displayed on the main screen and are stored in individual files.
The configuration and reading of the logger is done in less than 30 seconds.
The software allows you to generate the impression of temperature and humidity charts and export data from a test to PDF or CSV format.
The Data Logger Reader - DS1923 is used to view the thermal behavior of: Refrigerators, Frezzers, exhibitors, bottle coolers, appliances, electronic equipment, fixtures, machine tools, etc..
It is also used to record temperature and humidity at specific points of: thermal cameras, warehouses, barns, work environments, etc.
The whole system was designed for an easy and dynamic handling. This combination ensures a correct handling of information to meet the needs of requirements that may require a certification of electrical products or ISO 9001.
DATALOGGER Specifications
Humidity: 0%HR to 100%HR.
Humidity: 0,6%HR.
Thickness: 6 mm.
SOFTWARE
- Software of very easy handling.
- Save all measurements obtained by the DS1923G Data Logger.
- Generate lists of tests performed.
- You can search tests by:
- Number tested serial product.
- Name of product tested.
- No Serial Data Logger.
- Search between dates.
- Allows to export data to CSV (for Excel).
- Allows Export report to PDF files.
- Printing reports with graphs.
- Only authorized personnel can access the settings of the software.
- Manual.
- O.S.: Windows 7.
- 1 USB Port.
- Resolution: 1366px x 768px
