DPI 20: Swing Pendulum 20J
DPI 20: Pendulum Test Apparatus 20J (IEC 60068-2-75)
It was designed and manufactured to perform the test specified in the IEC 60068-2-75
It have a impact mass of 5.0Kg.

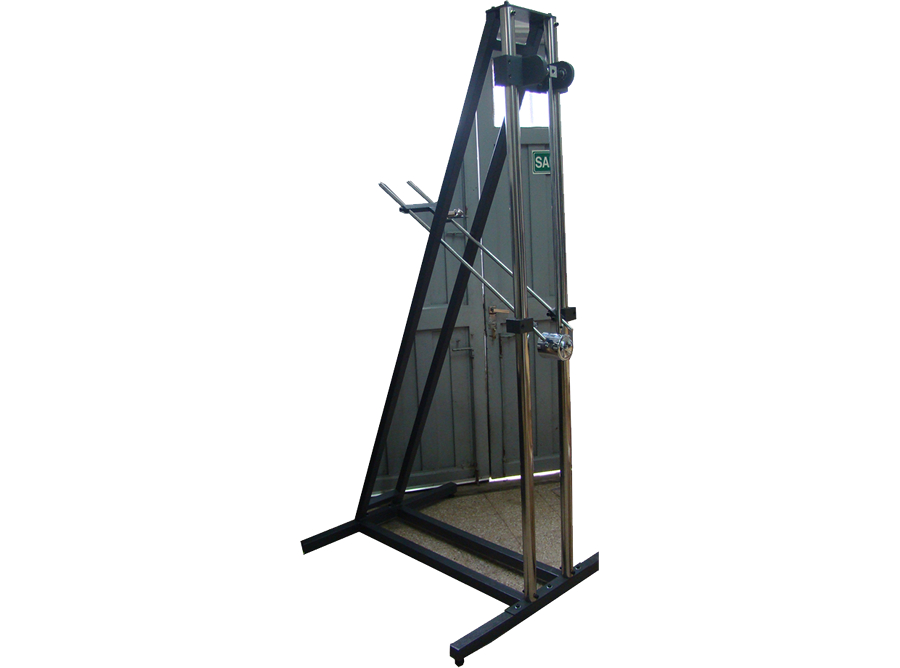

The SWING PENDULUM / IMPACT TEST APPARATUS (20J) from SECOM was designed and manufactured to perform the test specified in IEC 60068-2-75 and in many standards ( IEC 60335, IEC 60065, IEC 60745, IEC 61029, IEC 60950 ).

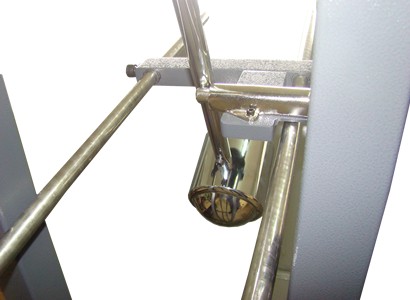

It consists of a supporting pipe structure an articulated arm having an impact mass of 5 Kg (striking Element) at its end.
TECHNICAL SPECIFICATIONS
Material
Steel

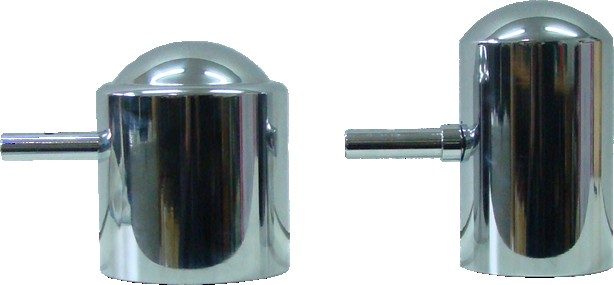

Striking Element
Material: Stainless Steel.
Ø of impact element: 100 mm.
Radious: 50 mm.
Mass: 5,00Kg.
Force: 20J.
Ø of impact element: 100 mm.
Radious: 50 mm.
Mass: 5,00Kg.
Force: 20J.
Finish
Painting.
Dimensions
1250 mm x 1250mm x 2300mm.
Weight: 75 Kg.
Weight: 75 Kg.
Guarantee
12 months.
According to
IEC 60068-2-75 & IEC 61330.
