DPI 05: Pendulum Test Apparatus 5J
DPI 05: Impact (Pendulum) Test Apparatus 5J (IEC 60068-2-75)
The SWING PENDULUM / IMPACT TEST APPARATUS 5J from SECOM was designed and manufactured to perform the test specified in IEC 60068-2-75
It have a impact mass of 1.7 Kg.
The DPI 05 (Swing Pendulum / Impact Test Apparatus 5J) from SECOM was designed and manufactured to perform the test specified in IEC 60068-2-75 and in many standards.

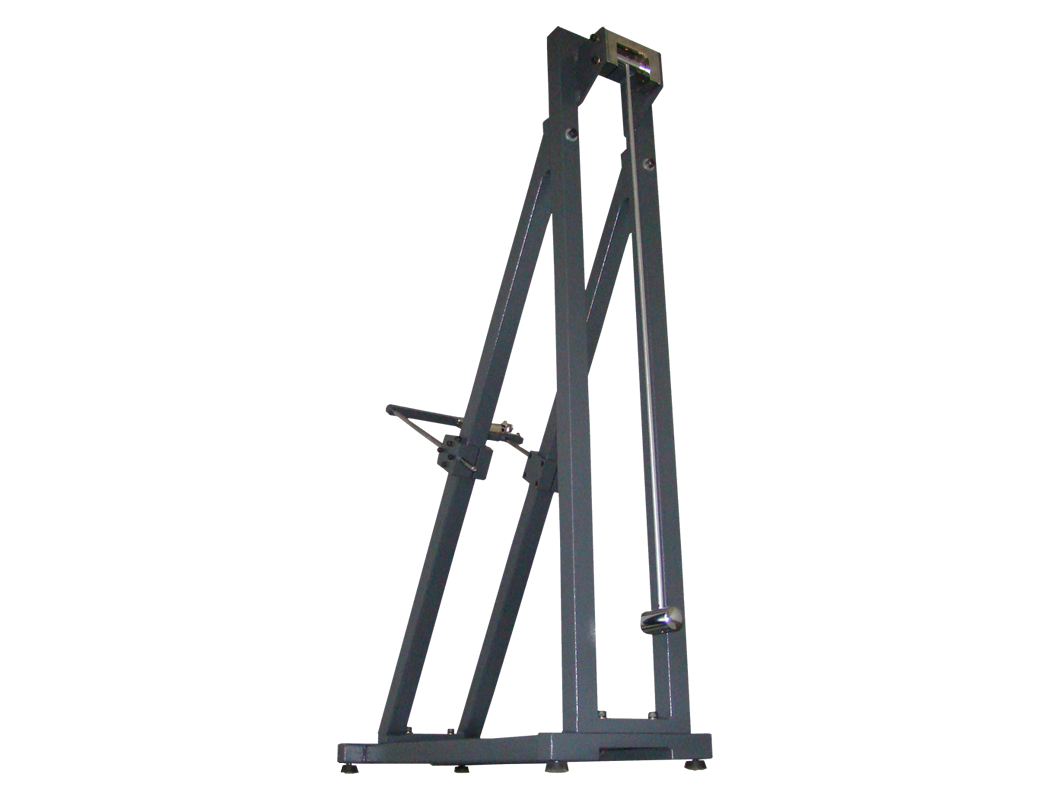

It consists of a supporting pipe structure an articulated arm having an impact mass of 1.7 Kg (Striking Element) at end.
TECHNICAL SPECIFICATIONS
Material
Steel

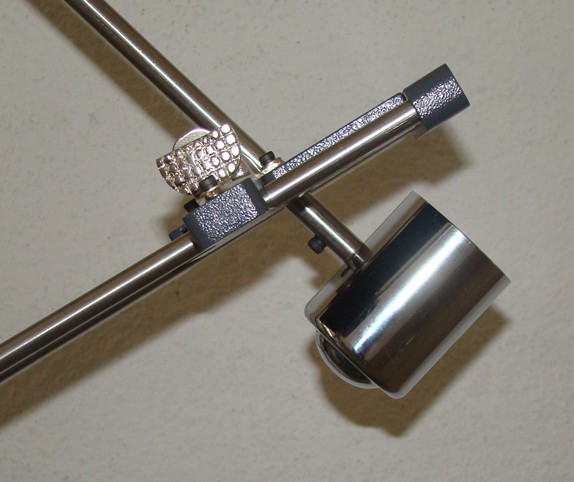

Striking Element
Material: Stainless Steel.
Radious Sphere: 25 mm.
Mass: 1,70Kg.
Radious Sphere: 25 mm.
Mass: 1,70Kg.
Finish
Painting.
Dimensions
300 mm x 800mm x 1300mm.
Weight: 35 Kg.
Weight: 35 Kg.
Guarantee
12 months.
According to
IEC 60068-2-75.
