DPI 02: Pendulum Test Apparatus 2J
DPI 02: Impact (Pendulum) Test Apparatus 2J (IEC 60068-2-75)
Device designed and manufactured to perform the test specified in IEC 60068-2-75
It have a impact mass of 0.5Kg.
The device DPI 02 (Swing Pendulum / Impact Test Apparatus 2J) from SECOM was designed and manufactured to perform the test specified in IEC 60068-2-75 and in many standards ( IEC 60335, IEC 60065, IEC 60745, IEC 61029, IEC 60950 ).

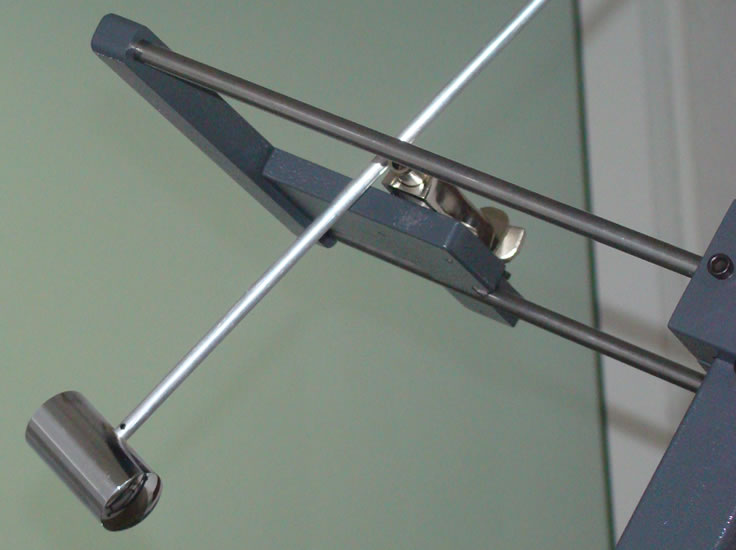

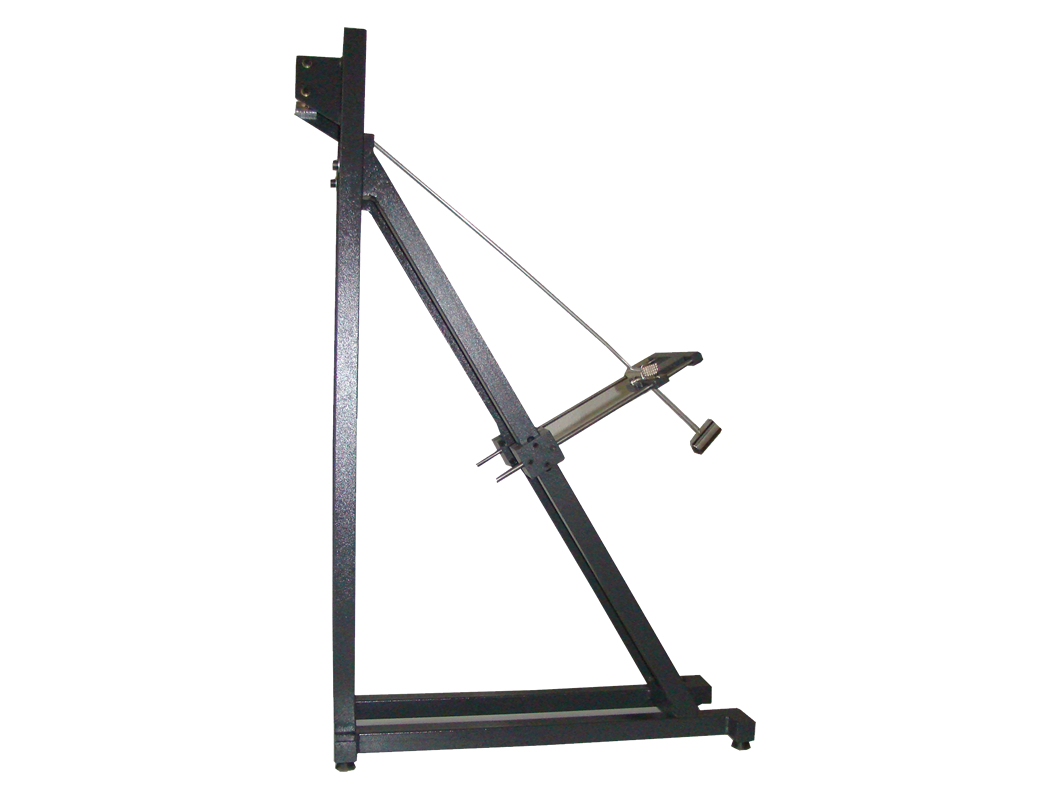

It consists of a supporting pipe structure an articulated arm having an impact mass of 0.5 Kg (Striking Element) at end.
It's was designed to meet the requirements of international safety regulatory agencies such as UL, DNV, IMQ, BVSQ, ITS, IRAM , CSA, VDE, DIN , INMETRO.
TECHNICAL SPECIFICATIONS
Material
Steel
Striking Element
Material: Stainless Steel
Radious Sphere: 25 mm.
Mass: 0,50Kg.
Radious Sphere: 25 mm.
Mass: 0,50Kg.
Finish
Chrome plating.
Painting.
Painting.
Dimensions
300 mm x 800mm x 1300mm.
Weight: 28 Kg.
Weight: 28 Kg.
Guarantee
12 months.
According to
IEC 60068-2-75.
