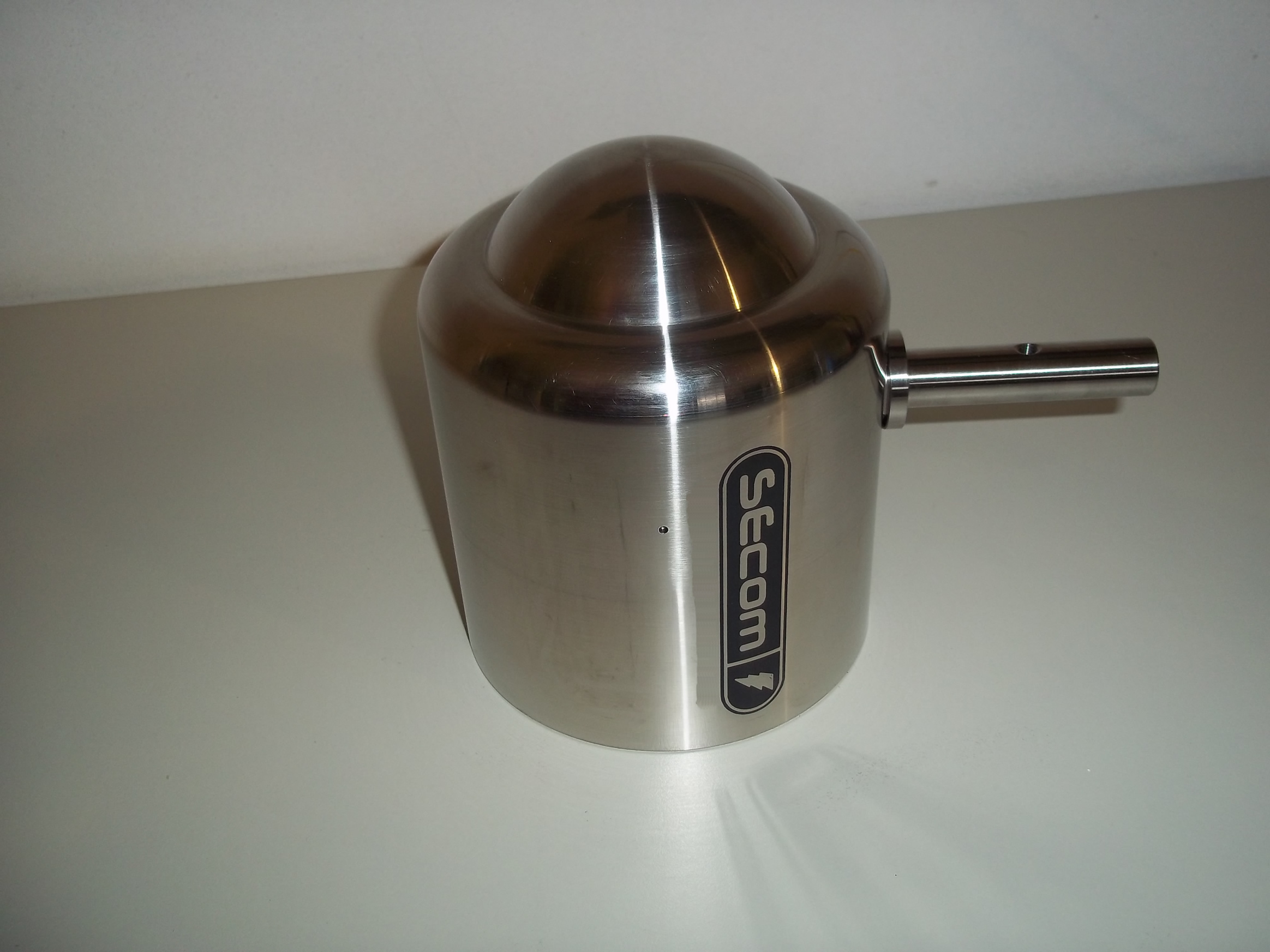

DEI 50: Striking Element 50J
DEI 50: Striking Element 50J (IEC 60068-2-75)
Designed and manufactured according to IEC 60068-2-75 - figure A.6
It have a impact mass of 10 Kg.
Striking Element of 10Kg designed according to IEC 60068-2-75.
Striking Elemento 50J.
It's was designed to meet the requirements of international safety regulatory agencies such as UL, DNV, IMQ, BVSQ, ITS, IRAM , CSA, VDE, DIN , INMETRO.
DEVICE SPECIFICATIONS
Impact element
Material:Stainless Steel.
Diameter: 125 mm.
Radious Sphere: 50 mm.
Mass: 10,00 Kg.
Diameter: 125 mm.
Radious Sphere: 50 mm.
Mass: 10,00 Kg.
Guarantee
12 months.
According to
IEC 60068-2-75 & IEC 61330.
