DCM 20: Calibration Device for Impact Hammer + IEC 60068-2-75 B1
DCM 20: Calibration devices

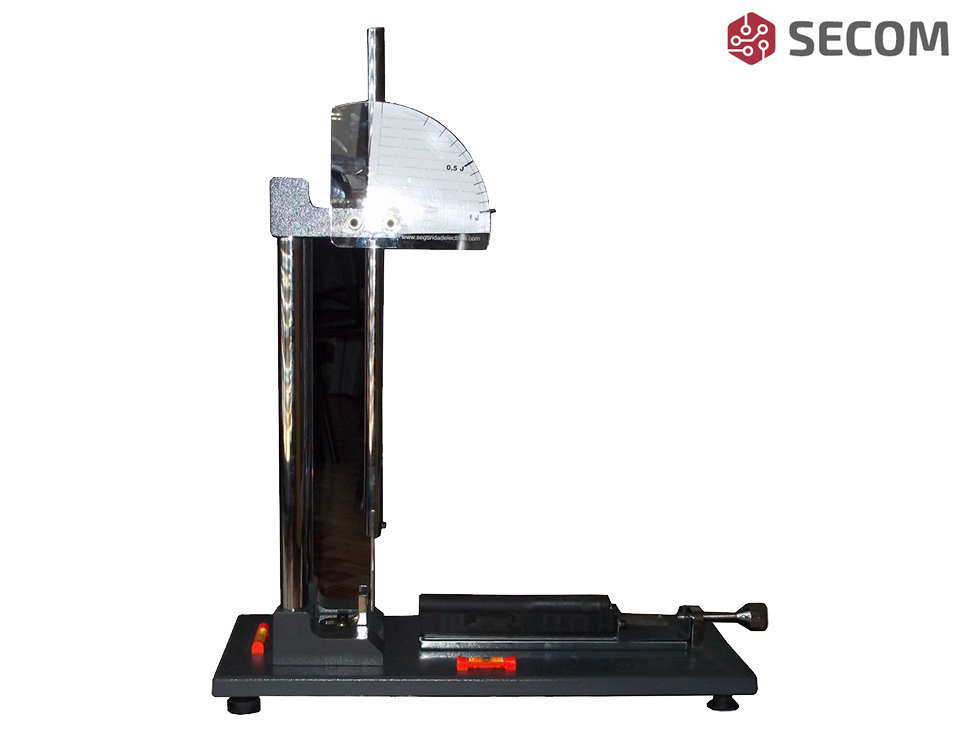

Calibration Device for Impact Hammer + IEC 60068-2-75 B1.
The DCM 20 Calibration Device for Spring Operated Impact Hammer, was designed with the requirements of Annex B of IEC 60068-2-75.
This device is mandatory in countless international standards (IEC 60335, IEC 60065, IEC 60745, IEC 61029, IEC 60601, IEC 60610 etc.), making it an indispensable part of any testing laboratory.
The Calibration Device for Spring Operated Impact Hammer, is universal for all models, allowing verification of the proper functioning of different types of hammers with the same calibration.
Our Calibration Device to allow calibrate Impact Hammers up energy 1J.
DEVICE SPECIFICATIONS
Material
Stainless Steel & Steel
Pendulum's Specifications
Material: Steel.
Pendulum Diameter: Ø 20mm.
Pendulum Length: 635mm ± 2,5mm.
Pendulum H: 120mm ± 2mm.
Pendulum D: 20mm ± 0,5mm.
Pendulum W: 4mm ± 0,01mm.
Pendulum Diameter: Ø 20mm.
Pendulum Length: 635mm ± 2,5mm.
Pendulum H: 120mm ± 2mm.
Pendulum D: 20mm ± 0,5mm.
Pendulum W: 4mm ± 0,01mm.

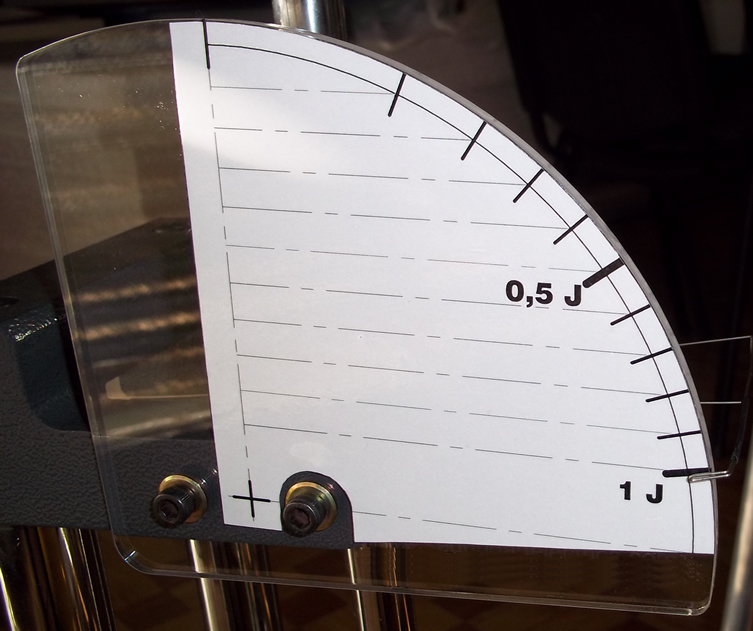

Graduate scale
0J a 1J.
Finished
Chrome bathroom.
Painting.
Painting.
Dimensions
Height: 750mm.
Width: 600mm.
Depth: 200mm.
Width: 600mm.
Depth: 200mm.
According to
Annex B of IEC 60068-2-75 fig. B1.
